No

Item

RV-QCAX12BSpecs

1

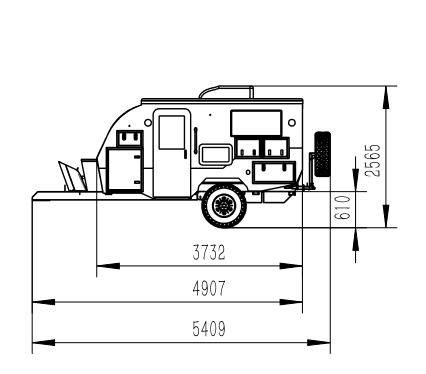

size

（L＊W＊H）

5500mm＊2130mm＊2565mm

(no pop top)

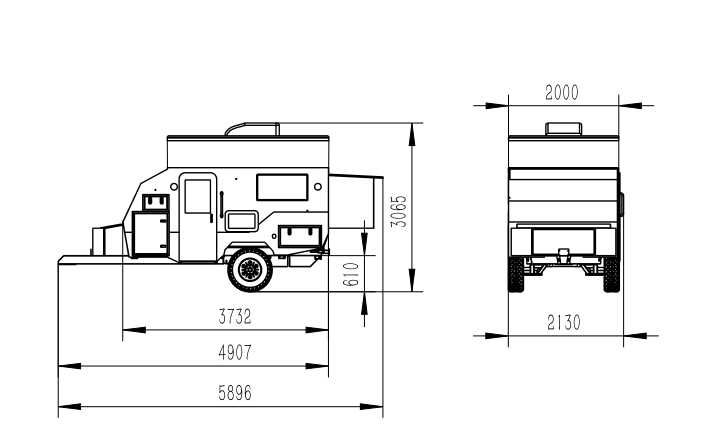

5500mm＊2130mm＊3065mm

(after pop top)

2

distance from ground

610mm

3

Pop top

Electrical pop top

4

mass weight (tent included)

2000KG（empty loading

5

Ball loading

160 KG

6

ATM

2650KG

7

water tanks

120L fresh water tank x 2pcs，80Lgrey water x1 pcs

8

surface finish

exterior body as aluminium-plastic panel,and aluminum pattern plate with spray treatment

9

spare wheel

1 set（tire and rim included ）

10

wheel size

265／75R16，aluminum rim

11

main configuration

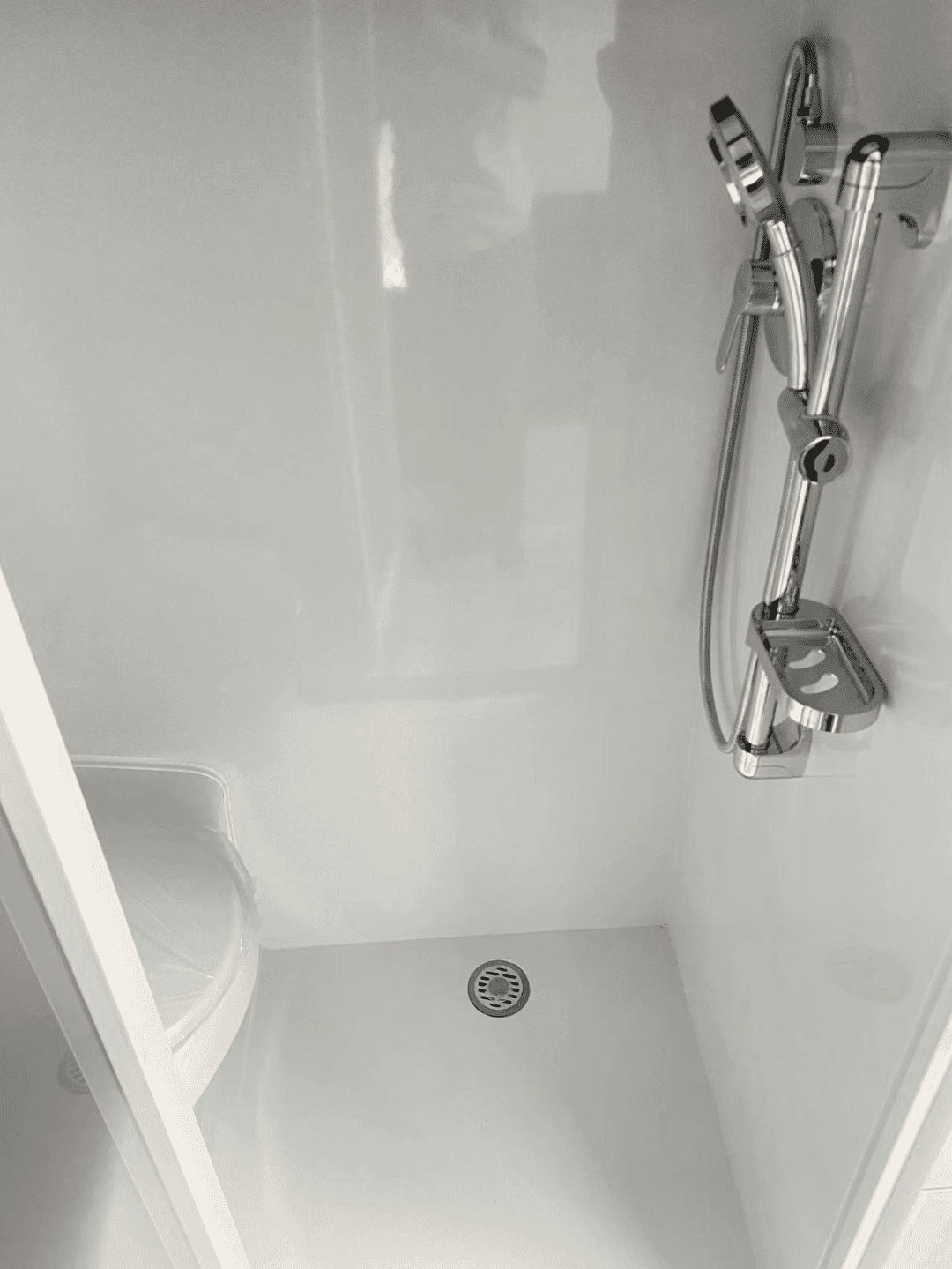

22inch australian standard tv、exhaust fan、shower system、hand washing basin、water heater、box toilet、3 sets 100AH batteries、30A adapter、300W solar panels with controlers、outdoors bench and chairs、indoors height-adjustable table and a few cigar lighters . USB、manual outdoors awning、auxiliary tent and outdoor showering

12

optional

fridge、inverter、air con、batteries、auto step、auto awning、4 Closed circuit monitoring
